Description

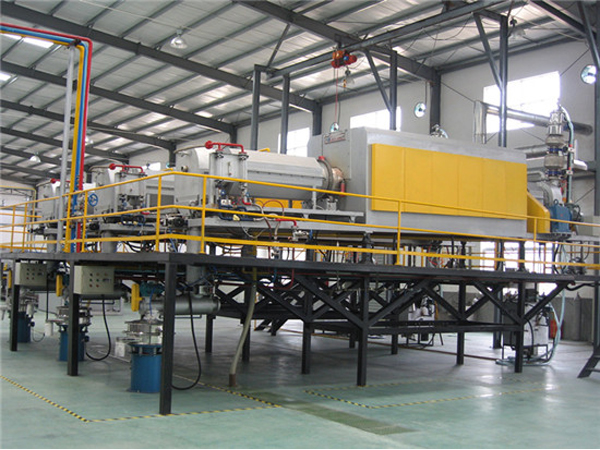

El rotary reduction furnace is mainly used for calcination processes salt and reducing metal oxide such as APT calcination, reduction of tungsten blue, etc.
Technical characteristics
1. The rotary reduction furnace used rotary tube resulting in a very good fluidity polvo.
2. The type of load and intermittent discharge ensures good sealing performance and low gas consumption with recycling gas.
3. Is available fully automatic loading and unloading, which ensures stable product quality and lower trabajo.
4 force. The oven has operating functions to remote control, remote diagnostics and remote malfunction update functions programa.
Optional settings Revolving Reduction Furnace
1. Refractory Material: aluminum silicate / alumina ceramic fiber / high alúmina
2 brick. Thermal Material: 0Cr21Al6Nb, 0Cr27Al7Mo2
3. Tube material: SUS304 / SUS310S / RA330 / RA600
4. Sealing type: sealing fill / seal graphite + metálico
5. Loading type: vacuum feeding / vibration feeding / manual feeding
6. Operating panel: simulation screen / touch / industrial
7 computer screen. PLC (Programmable Logic Control): OMRON / Siemens
8. Temperature controller: Shimaden / EUROTHERM
9. Thermocouple: Type C / Type S / Type N
10. Recorder: No paper / paper, foreign brand / brand china
11. Electrical components: CHINT / Schneider / Siemens
Rotating Oven Specifications Reduction
| Model | RF-400-3 | RF-600-4 | RF-800-6 |
| Pipe diameter (mm) | 400 | 6 o'clock | 800 |
| thermal zone | 4 | 5 | 6 |
| Thermal zone length (mm) | 5600 | 6500 | 8000 |
| Maximum temperature (° C) | 1050 | 1050 | 1050 |
| Uniformity temperature (° C) | ± 5 | ± 5 | ± 5 |
| Thermal power (kW) | 140 | 250 | 360 |
| Process gas rotary reduction furnace | Ar / NAr / N2/ H2/ NH3 | Ar / NAr / N2/ H2/ NH3 | Ar / NAr / N2/ H2/ NH3 |
| Total size L × W × H (mm) | 12000 × 4000 × 4000 | 14000 × 5000 × 4500 | 16500 × 5500 × 4500 |
| Above specifications are defined according to the process of reducing tungsten powder. These specifications can be adjusted to the requirements of the processes are not standard acceptance, specific details will be established in the agreements and technical proposals. |
