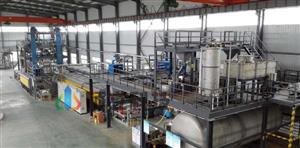

DescriptionThe horizontal vacuum graphite furnace is applied to high temperature graphitization and the treatment of C / C purity, graphite, refractory insulation material of carbon fiber, graphite products, etc. K
Technical characteristics1. The size of the working area of the furnace can reach 2.5m × 2.5m × 5m, which can satisfy the treatment of large-size CVD parts.. K
2. The unique ACME super high temperature and its high current power technology makes the equipment stable for a long period at 2600ºC.
3. The graphitization furnace adopts multiple temperature control zones in order to achieve a good temperature homogeneity.
4. The external rapid-flow system is an option characterized by a short cycle per lot and high efficiency.
Optional Vacuum Horizontal Graphite Oven Configuration1. Oven door: Rotary vise / sliding type, Manual locking / Automatic locking collar lock.
2. Oven vessel: All carbon steel / Stainless steel inner layer / Completely stainless steel.
3. Red Hot Zone: Light Carbon Felt / Graphite / Hard Compound / CFC K
4. Heating compound and muffle: Pressed isostatic graphite / High press purity, high strength and density graphite / Fine size graphite. K
5. Gas processing system: Volume / mass flow meter, manual / automatic valve, foreign brand / Chinese brand. K
6. Vacuum Pump and Caliber: Foreign Brand / Chinese Brand
7. HMI: Simulation / touch screen / personal industrial computer K
8. PLC (Programmable Logic Control): OMRON / Siemens K
9. Temperature controller: SHIMADEN / EUROTHERM
10. Thermocouple: Type C, S, K, N
11. Recorder: Paperless / With paper, foreign brand / Chinese brand K
12. Electronic components: CHINT / Schneider / Siemens K
13. Loading truck: roller type / fork type / long distance folding driving type.
Graphitizing Furnace Specifications| Spec / Model | HVG-060609-C | HVG-080812-C | HVG-101015-C | HVG-131320-C | HVG-151530-C | HVG-202040-C |
| Working area dimensions (W × H × L) (mm) | Φ600 × 600 × 900 | Φ800 × 800 × 1200 | Φ1000 × 1000 × 1500 | Φ1300 × 1300 × 2000 | Φ1500 × 1500 × 3000 | Φ2000 × 2000 × 4000 |
| Maximum temperature (° C) | 2600 | 2600 | 2600 | 2600 | 2600 | 2600 |
| Uniform temperature (Cº) | ± 7.5 | ± 7.5 | ± 10 | ± 10 | ± 15 | ± 20 |
| Final vacuum (Pa) | fifty | fifty | fifty | fifty | fifty | fifty |
| Pressure increase range (Pa / h) | 0.67 | 0.67 | 0.67 | 0.67 | 0.67 | 0.67 |
| The above parameters can be adjusted according to the process requirements, and do not have to be accepted as standard. The details and specifications required will be recorded in the technical proposal and the contracts. |
