Description

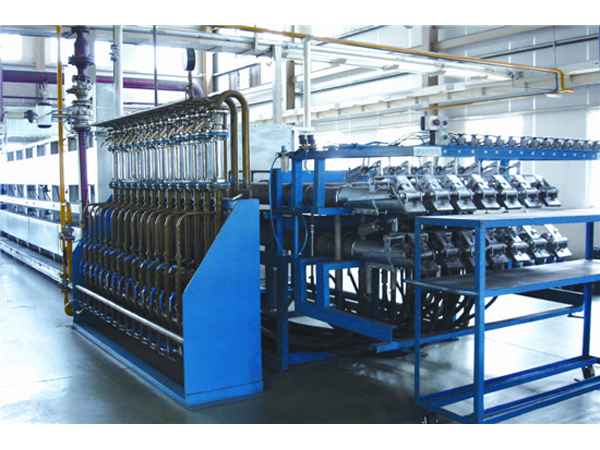

Multitube
El reduction furnace is mainly used to reduce powder metallurgy (such as tungsten, molybdenum, etc.).
Technical characteristics
1. Heating manifold ensures good temperature uniformity and high capacity producción.
2. The round tube ensures less deformation and smooth loading and unloading.
3. Intermittent loading and discharge type ensures good sealing performance and low gas consumption gas.
4 recycling. Pushers ovens are configured with automatic charger boat pusher boat, the download service and discharge of boat, which ensure stable quality and lower labor force.
5. The multi-tube furnace has operating functions remote control, remote diagnostics and remote malfunction update functions programa.
Optional configuration Multitubo Reduction Furnace
1. Refractory Material: aluminum silicate / alumina ceramic fiber / high alúmina.
2 brick. Thermal Material: 0Cr21Al6Nb, 0Cr27Al7Mo2
3. Muffle Material: SUS304 / SUS310S / RA330 / RA600 / ZG45Cr28Ni48W5Si2
4. pusher type: pneumatic / hydraulic / mecánico
5. Loading and unloading: loading and automatic / manual loading and unloading with automatic pusher bote.
6 download. PLC (Programmable Logic Control): OMRON / Siemens
7. Temperature controller: Shimaden / EUROTHERM
8. Thermocouple: Type C / Type S / Type N
9. Recorder: No paper / paper, imported brand / brand china
10. Operational Panel: simulation screen / touch / industrial
11 computer screen. Electrical components: CHINT / Schneider / Siemens
Specifications Oven Multitubo
| Model | MT-140-14-12 | MT-140-15-12 | MT-140-18-12 |
| Diameter of the inner muffle (mm) | 140 | 140 | 140 |
| Number muffle | 14 | fifteen | 18 |
| thermal zone | 6 carousels 12 zones | 6 carousels 12 zones | 6 carousels 12 zones |
| Thermal camera length (mm) | 8300 | 8300 | 8300 |
| Maximum temperature (° C) | 1100 | 1100 | 1100 |
| Uniformity temperature (° C) | ± 5 | ± 5 | ± 5 |
| Thermal power (kW) | 480 | 580 | 700 |
| Process gas | Ar / NAr / N2/ H2 | Ar / NAr / N2/ H2 | Ar / NAr / N2/ H2 |
| Total size L × W × H (mm) | 17500 × 3800 × 2500 | 17500 × 3800 × 2500 | 18000 × 3800 × 2500 |
| The above specifications are defined according to the process of reducing tungsten powder. These specifications can be adjusted according to the different types of materials. Above specifications are not final acceptance parameters that must be defined in the technical agreements and the contract. |
