Description

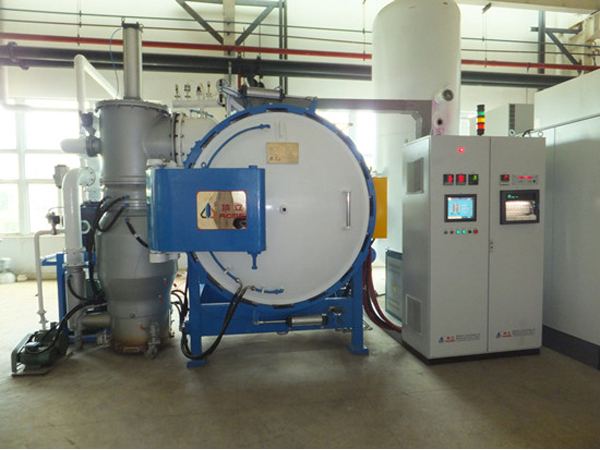

El zone sintering furnace hot metal is used mainly for sintering titanium alloy, nickel alloy, tungsten alloy, heavy alloy, molybdenum alloy, high temperature alloy and cemented carbide materials. It works for vacuum sintering processes, partial pressure and sintered under pressure sintered positiva.
Technical characteristics
1. The oven has a special structure and design thermal zone of thermal elements, which are characterized by a good uniformity temperatura.
2. It features functions slow vacuum, vacuum sintering, sintering under positive pressure and pressure sintering parcial.
3. The sintering furnace hot metal zone works by operating on touchscreen and the central controller PLC (Programmable Logic Control), which makes the operation simple and confiable.
4. The oven has the fault alarm functions for excess temperature or pressure, automatic pressure mechanical protection and blocking, which form a highly seguro.
5 oven. It features remote operation, remote diagnostics and remote malfunction update functions programa.
Optional Configuration Sintering Furnace Hot Metal Zone
1. Oven door: Manual lock / automatic lock necklace bloqueo.
2. Furnace vessel: stainless steel interior layer / All Steel inoxidable
3. Thermal zone oven: I molybdenum doped with La (Lanthanum) + stainless steel / tungsten alloy + molybdenum + steel alloy inoxidable
4. Material Heating: doped molybdenum alloy lanteno (La) / alloy tungsteno
5. Process gas control: volume flow meter / mass, manual / automatic valve, imported brand / china
6. Vacuum pump and gauge: Foreign Brand / china
7. Operational Panel: simulation screen / touch / industrial
8 computer screen. PLC (Programmable Logic Control): OMRON / Siemens
9. Temperature controller: Shimaden / EUROTHERM
10. Thermocouple: Type C (coated tungsten / molybdenum coating / ceramic coating)
11. Recorder: No paper / paper, imported brand / china
14. Electrical components: CHINT / Schneider / Siemens
Specifications Sintering Furnace Hot Metal Zone
| Specifications / Models | MHS-020203 | MHS-030306 | MHS-040408 | MHS-050513 |
| Size of work area (A × A × L) (mm) | 200 × 200 × 300 | 300 × 300 × 600 | 400 × 400 × 800 | 500 × 500 × 1300 |
| Maximum weight (kg) (weight does not mean the actual load) | 25 | 100 | 200 | 400 |
| Maximum temperature (° C) | 1550 | 1550 | 1550 | 1550 |
| Uniformity of temperature Sintering Furnace Hot Metal Zone (° C) | ± 3 | ± 3 | ± 5 | ± 5 |
| Thermal power (kW) | fifty | 85 | 105 | 240 |
| thermal vacuum (Pa) | 4 × 104 × 10-3 | 4 × 104 × 10-3 | 4 × 104 × 10-3 | 4 × 104 × 10-3 |
| Rate of increase in pressure (Pa / h) | 0.67 | 0.67 | 0.67 | 0.67 |
| Process gas | Ar / NAr / N2/ H2 | Ar / NAr / N2/ H2 | Ar / NAr / N2/ H2 | Ar / NAr / N2/ H2 |
| The above parameters can be adjusted to the requirements of the procedures are not standard acceptance, specific details will be declared in the agreements and technical proposals. |
