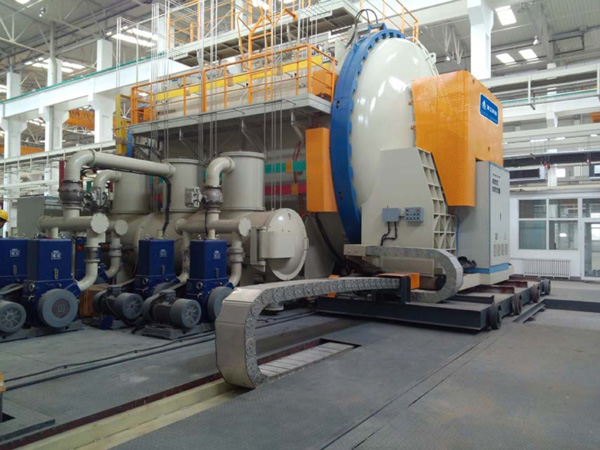

Horizontal Vacuum Carbonization Furnace

Description
The horizontal vacuum carbonization furnace is applied for carbonization treatments at high C / C temperatures, carbon fiber insulation materials and high thermal conductivity graphite film. K

Technical characteristics
1. The horizontal vacuum charring uses multiple temperature control zones which ensures good temperature homogeneity.
2. The external system of fast circulation cooling is adopted as an option, achieving a short cycle per lot.  K
3. The carbonization process of positive or negative pressure is available.
4. Suitable for the treatment of tar, solid dust and exhaust gases during the carbonization process.

Optional Horizontal Vacuum Charging Oven Configuration
1. Oven door: manual closing / automatic closing with tensioning ring. Manual lock / Automatic locking collar lock.
2. Oven vessel: All carbon steel / Inner layer of stainless steel / Completely of stainless steel
3. Furnace Heating Zone: Light Carbon Felt / Light Graphite Felt / Hard Compound Felt / CFC K
4. Heating compound and muffle: Pressed isostatic graphite / High press purity, High density and high strength graphite / Fine size graphite. K
5. Gas Process System: Mass / Volume Flow Meter, Manual Valve / Automatic Valve, Foreign Brand / Chinese Brand. K
6. Vacuum pump and gauge: Foreign / Chinese brand K
7. HMI: Simulation / Touch Screen / Personal Industrial Computer K
8. PLC (Programmable Logic Control): OMRON / Siemens K
9. Temperature Controller: SHIMADEN / EUROTHERM
10. Thermocouple: Type C, S, K, N
11. Recorder: Paperless / paperless recorder, foreign brand / Chinese brand K
12. Electrical Components: CHINT / Schneider / Siemens K

Horizontal Vacuum Carbonization Oven Specifications

Spec / Model	HVC-060609-C	HVC-080812-C	HVC-101015-C	HVC-131320-C	HVC-151530-C	HVC-202040-C
Working area dimensions (W × H × L) (mm)	Φ600 × 600 × 900	Φ800 × 800 × 1200	Φ1000 × 1000 × 1500	Φ1300 × 1300 × 2000	Φ1500 × 1500 × 3000	Φ2000 × 2000 × 4000
Maximum temperature (° C)	1500	1500	1500	1500	1500	1500
Uniform temperature (Cº)	± 7.5	± 7.5	± 7.5	± 7.5	± 10	± 15
Final vacuum (Pa)	fifty	fifty	fifty	fifty	fifty	fifty
Pressure increase range (Pa / h)	0.67	0.67	0.67	0.67	0.67	0.67
The above parameters can be adjusted according to the process requirements, and do not have to be accepted as standard. The details and specifications required will be recorded in the technical proposal and the contracts.
